References:
Rob Riker Teaching VPN Concepts on YouTube
CCNP Security Virtual Private Networks SVPN 300-730 Official Cert Guide

• ISBN: 9780136660606
• Chapter 3, Router Configuration with IKEv2, page 78.

• This lab provides the answers how to configure IKEv2.

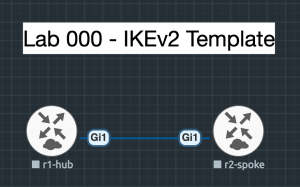

• This lab has two directly connected routers that share IKEv2's ESP-encrypted messages.

r1-hub's initial configuration

en
conf t
no ip domain lookup
hostname r1-hub
line con 0
history size 256
logg syn
exec-timeout 0 0
width 512
exit
interface Loopback0
 no shutdown
 ip address 1.1.1.1 255.255.255.255
!
interface GigabitEthernet1
 shutdown
 ip address 12.1.1.1 255.255.255.0
!
ip access-list extended castle-acl
 remark Permit statements equal traffic that shall be encrypted.
 permit ip host 12.1.1.1 host 12.1.1.2
!
crypto ikev2 proposal rook-proposal
 encryption aes-cbc-256
 integrity sha512
 group 14
!
crypto ikev2 policy svpn-policy
 proposal rook-proposal
!
crypto ikev2 keyring lion-key
 peer peer-remote
  address 12.1.1.2
  pre-shared-key cisco
!
crypto ikev2 profile side-profile
 match identity remote address 12.1.1.2 255.255.255.255
 authentication remote pre-share
 authentication local pre-share
 keyring local lion-key
!
crypto ipsec transform-set tset esp-aes esp-sha512-hmac
 mode tunnel
!
crypto map svpn-map 10 ipsec-isakmp
 set peer 12.1.1.2
 set transform-set tset
 set pfs group14
 set ikev2-profile side-profile
 match address castle-acl
!
interface GigabitEthernet1
 crypto map svpn-map
 no shutdown
!
end
wr

r2-spoke's initial configuration

en
conf t
no ip domain lookup
hostname r2-spoke
line con 0
history size 256
logg syn
exec-timeout 0 0
width 512
exit
interface Loopback0
 no shutdown
 ip address 2.2.2.2 255.255.255.255
!
interface GigabitEthernet1
 shutdown
 ip address 12.1.1.2 255.255.255.0
!
ip access-list extended castle-acl
 remark Permit statements equal traffic that shall be encrypted.
 permit ip host 12.1.1.2 host 12.1.1.1
!
crypto ikev2 proposal rook-proposal
 encryption aes-cbc-256
 integrity sha512
 group 14
!
crypto ikev2 policy svpn-policy
 proposal rook-proposal
!
crypto ikev2 keyring lion-key
 peer peer-remote
  address 12.1.1.1
  pre-shared-key cisco
!
crypto ikev2 profile side-profile
 match identity remote address 12.1.1.1 255.255.255.255
 authentication remote pre-share
 authentication local pre-share
 keyring local lion-key
!
crypto ipsec transform-set tset esp-aes esp-sha512-hmac
 mode tunnel
!
crypto map svpn-map 10 ipsec-isakmp
 set peer 12.1.1.1
 set transform-set tset
 set pfs group14
 set ikev2-profile side-profile
 match address castle-acl
!
interface GigabitEthernet1
 crypto map svpn-map
 no shutdown
!
end
wr

Verification

r1-hub#ping 12.1.1.2
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 12.1.1.2, timeout is 2 seconds:
..!!!
Success rate is 60 percent (3/5), round-trip min/avg/max = 1/3/7 ms

r1-hub#show crypto ikev2 sa
 IPv4 Crypto IKEv2  SA

Tunnel-id Local                 Remote                fvrf/ivrf            Status
1         12.1.1.1/500          12.1.1.2/500          none/none            READY
      Encr: AES-CBC, keysize: 256, PRF: SHA512, Hash: SHA512, DH Grp:14, Auth sign: PSK, Auth verify: PSK
      Life/Active Time: 86400/13 sec

 IPv6 Crypto IKEv2  SA

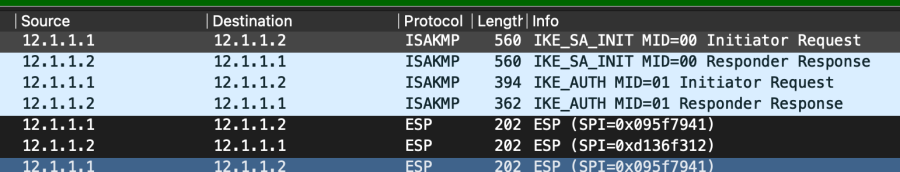

• Packet Capture on r1-hub e0/0 interface.

• The crypto is working correctly. The ICMP (ping) packets are formatted ESP because they are encrypted.
